Winter Break Game Jam — Gameplay Systems & State Architecture

A rapid-development Unreal Engine 5 project focused on stabilizing gameplay, migrating core logic to C++, and implementing a clean, state-driven architecture under tight game-jam constraints.

Winter Break Game Jam system flow diagram

Project Overview

This project was developed during a Winter Break Game Jam with a small team. I was responsible for rebuilding broken gameplay systems, establishing a reliable PlayerController architecture, and designing a global game-state system to support both gameplay and warehouse-management modes.

Unreal Engine 5
C++ Gameplay Systems
Blueprint ↔ C++ Integration
Game State Architecture
Rapid Prototyping

My Contributions

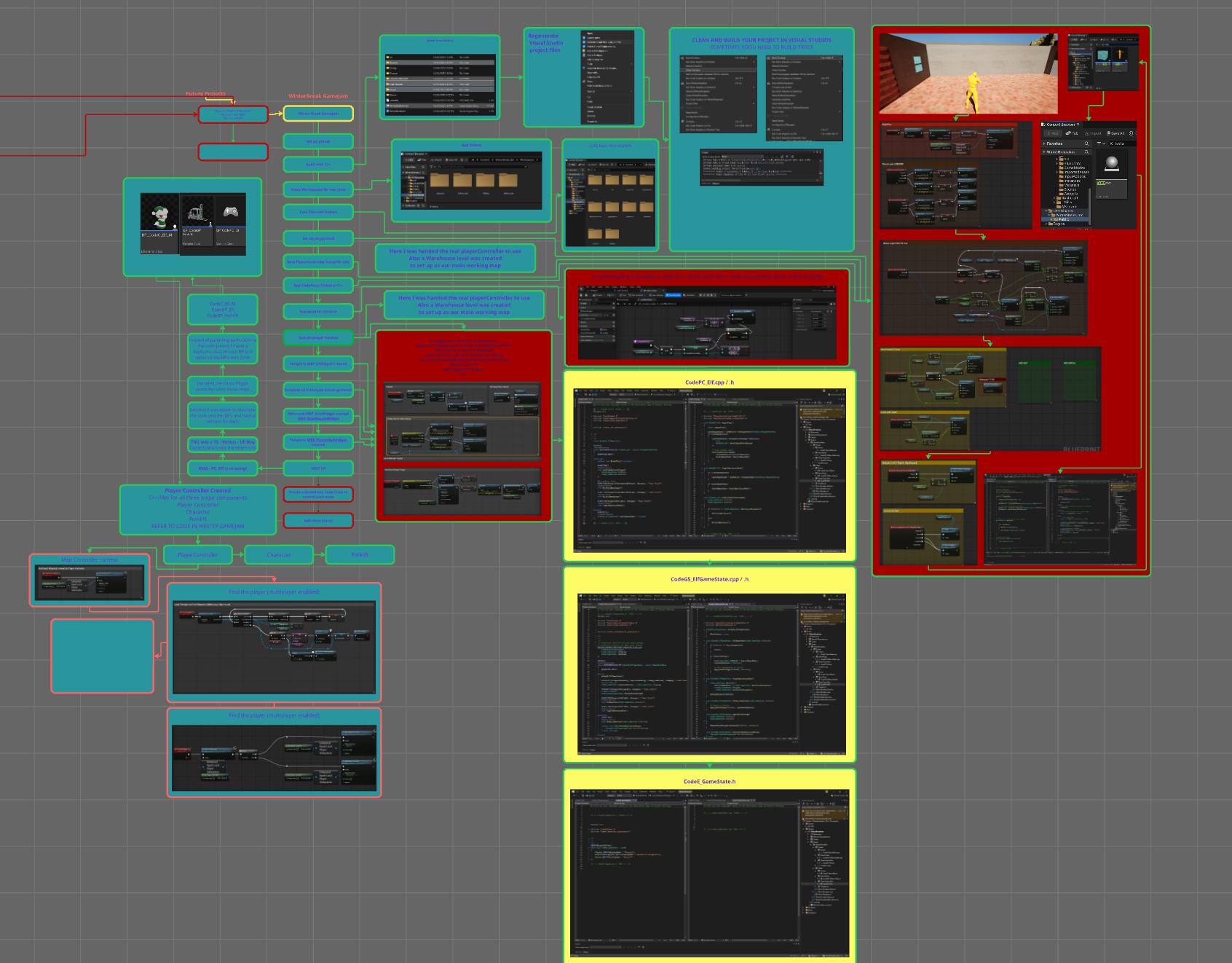

Workspace & testing setup
Established a clean development environment with input mappings, test scenes, and debugging hooks to allow rapid iteration.

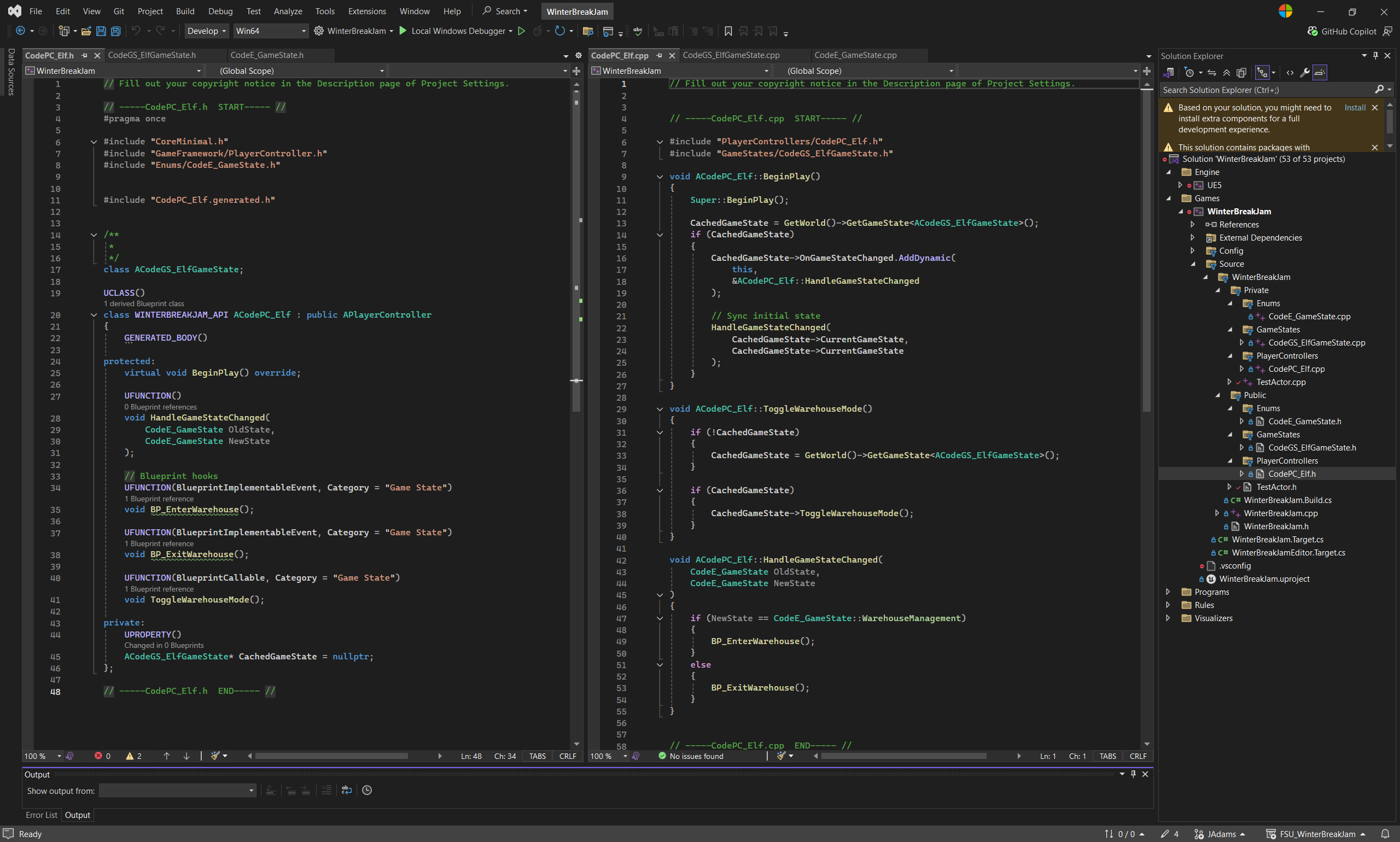

PlayerController rebuild (Blueprint → C++)
Converted a broken Blueprint PlayerController into a fully C++-driven system handling input, possession, UI control, and server communication.

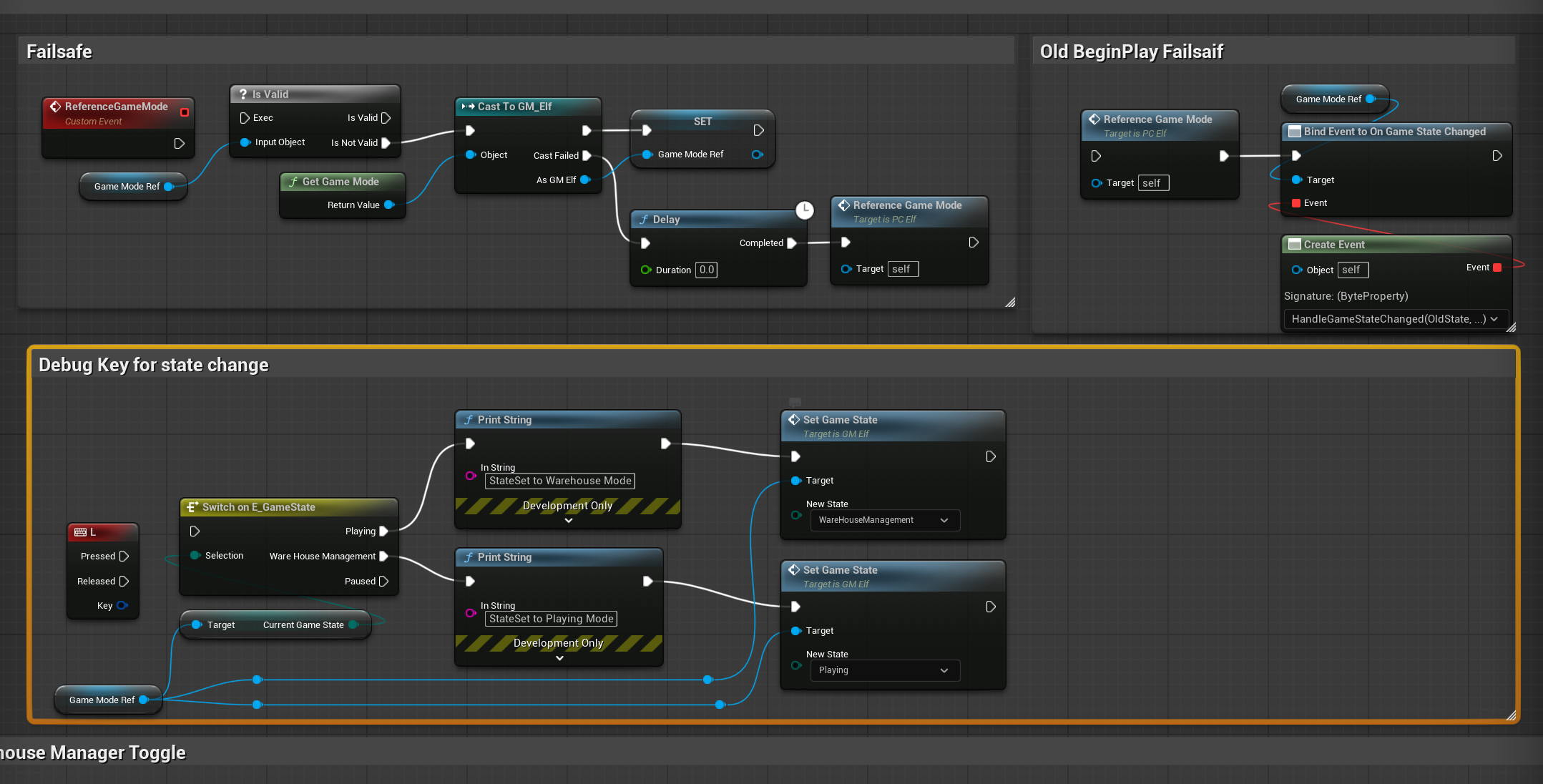

Global game state system
Implemented a replicated, enum-driven GameState with event dispatching to synchronize gameplay flow, UI modes, and input behavior.
Scene & mode management
Created Blueprint-driven scene and mode logic while enforcing authoritative state changes through C++.

System Architecture

The project is structured around a single authoritative GameState, with the PlayerController acting as the bridge between input, UI, and gameplay systems.


┌─────────────────────────────┐
│        GameState            │
│-----------------------------│
│ Replicated Game Mode Enum   │
│ OnGameStateChanged Event    │
│ Order Submission Logic      │
└──────────────┬──────────────┘
               │
     OnGameStateChanged
               │
┌──────────────▼──────────────┐
│      PlayerController       │
│-----------------------------│
│ Input Mapping Contexts      │
│ UI & Cursor Control         │
│ Pawn / Vehicle Possession  │
│ Server RPCs                 │
└──────────────┬──────────────┘
               │
┌──────────────▼──────────────┐
│        Pawn Layer           │
│-----------------------------│
│ Elf Character (focus only)  │
│ Forklift Pawn               │
│ Pallet Actors               │
└─────────────────────────────┘

State-Driven UI & Input Flow

High-level gameplay flow is controlled by a replicated enum-based game state:

Playing — Gameplay input active, HUD visible
Warehouse Management — Cursor enabled, management UI active
Paused — Input restricted

Forklift Vehicle System

The forklift is implemented as a non-physics Pawn fully driven by the PlayerController. Movement and lift behavior are deterministic and tunable.

Smooth acceleration and deceleration
Brake-before-reverse behavior
Speed-scaled steering
Lerped rail and fork lift mechanisms

Order System & Server Authority

Warehouse orders flow cleanly from UI → PlayerController → GameState using server RPCs to enforce authority boundaries.

What I Learned

Game jams expose architecture flaws fast
Clear ownership and state flow matter more than feature count.
PlayerController is a powerful architectural anchor
Centralizing input, UI, and possession prevents cascading bugs.
Blueprint + C++ works best with strict boundaries
Designers move fast, systems remain safe and debuggable.
