System Overview

This system turns weapons into reusable data objects instead of one-off scene objects.

What It Does

The weapon data and loadout system lets each weapon define its identity, HUD display, view model prefab, fire mode, ammo type, reload behavior, projectile pattern, XP value, handling data, and audio data through ScriptableObjects.

The player can own a growing weapon collection, cycle through available weapons, and keep an active weapon saved across sessions. At the same time, individual mission drills can temporarily equip or restrict weapons so a pistol drill stays a pistol drill, even if the player owns a shotgun, revolver, or rifle.

The important design split is collection versus permission. The save system can remember what the player owns, while the current mission can decide what the player is allowed to use right now.

Primary Role

Define weapons as reusable data and connect them to player loadout, mission restrictions, ammo behavior, and progression.

Core Loop

Own weapon → Equip weapon → Fire/reload/use weapon → Gain XP → Save active weapon and owned collection.

Portfolio Value

Demonstrates data-driven gameplay design, reusable ScriptableObject architecture, and scalable loadout rules.

Weapon System Snapshots

Screenshot references for weapon data, player-facing loadout UI, mission restrictions, ammo definitions, and pickup flow.

Unity Inspector screenshot of a WeaponData ScriptableObject showing weapon identity, HUD fields, view model prefab, handling data, audio data, firing values, magazine values, reload behavior, and projectile pattern

WeaponData ScriptableObject

Each weapon is tuned as data, making new weapons easier to create without rewriting controller logic.

  • WeaponData
  • Inspector Tuning
  • ScriptableObjects

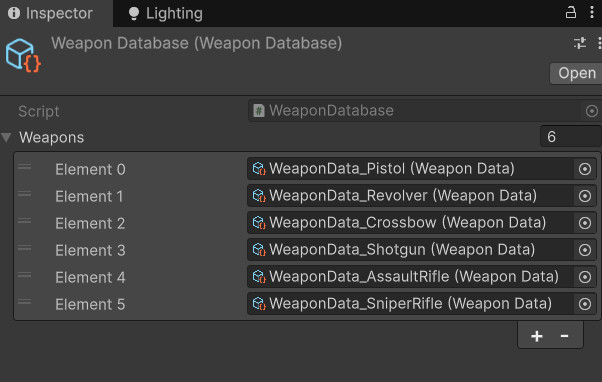

Unity Inspector screenshot of a WeaponDatabase ScriptableObject listing all available weapon data assets in database order

Weapon Database

The database turns saved weapon IDs into usable WeaponData references and keeps owned weapons in a consistent order.

  • Weapon Lookup
  • Saved IDs
  • Database Order
Gameplay screenshot of the weapon bandolier HUD showing owned weapons available for selection

Owned Weapon Loadout

The bandolier reflects the player’s owned collection and gives the player readable weapon switching feedback.

  • Bandolier
  • Owned Weapons
  • HUD Feedback
Gameplay screenshot of a weapon pedestal offering a temporary mission weapon with an interaction prompt

Mission Weapon Pedestals

Pedestals can offer weapons inside trials while preserving the larger saved player collection.

  • Interactable
  • Temporary Weapon
  • Trial Setup

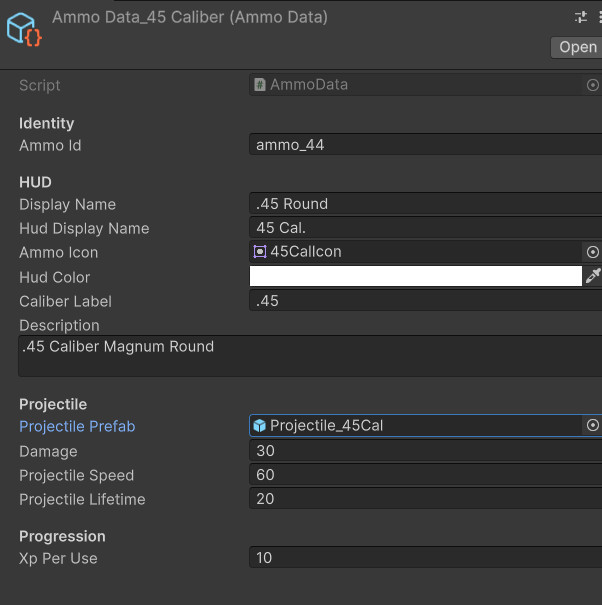

Unity Inspector screenshot of an AmmoData ScriptableObject showing projectile prefab, damage, speed, lifetime, and ammo identity values

Ammo Data

Ammo data separates projectile damage, projectile prefab, speed, and lifetime from the weapon controller.

  • AmmoData
  • Projectiles
  • Damage Values

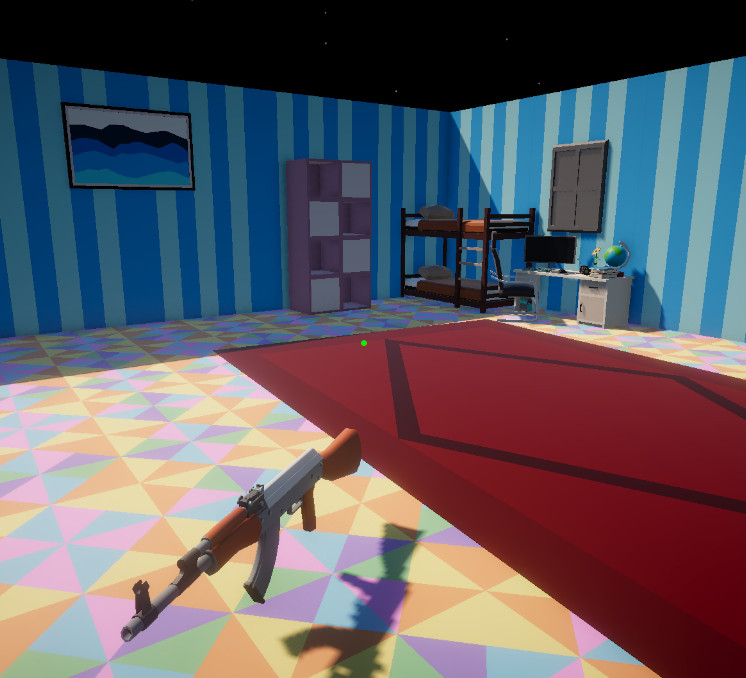

Gameplay screenshot of a dropped weapon pickup that can be collected and added to the player loadout

Weapon Pickups

Weapons can exist as pickups in the world, supporting collection, drop flow, and inventory expansion.

  • Pickup
  • Inventory
  • Collection

Player Flow

The system supports both long-term weapon collection and short-term mission control.

1. Weapon Exists as Data

Each weapon is defined through WeaponData, including identity, visuals, firing, reload behavior, ammo, handling, and audio.

2. Player Owns Weapons

Owned weapon IDs are saved in player progress and rebuilt through the weapon database.

3. Player Equips Active Weapon

The active weapon ID is saved, restored, and used by the weapon controller to spawn the correct view model.

4. Mission Can Restrict Selection

A drill can lock weapon switching or equip a specific reward weapon to preserve challenge structure.

5. Weapon Use Awards Progress

Weapon usage can award XP by weapon type, letting weapon families progress independently.

6. Save System Preserves Loadout

The player’s collection, active weapon, and weapon XP persist after scene changes and reloads.

Key Components

The weapon architecture separates weapon definitions, saved ownership, active selection, ammo behavior, and player input.

WeaponData

Defines each weapon’s identity, HUD display, view model, handling data, audio data, fire mode, ammo, magazine size, reload mode, dry fire behavior, projectile pattern, and XP values.

  • ScriptableObject
  • Weapon Definition
  • Inspector Tuning

WeaponDatabase

Provides a central weapon lookup table so saved weapon IDs can be converted back into usable WeaponData assets.

  • Lookup
  • Saved IDs
  • Database

PlayerWeaponController

Handles active weapon state, firing, reload routines, projectile spawning, ammo state, feedback events, and view model spawning.

  • Active Weapon
  • Fire Logic
  • Reload Logic

PlayerWeaponLoadoutController

Handles weapon cycling by asking the database for the player’s owned weapons, respecting mission selection locks, and equipping the next or previous weapon.

  • Weapon Cycling
  • Owned Weapons
  • Selection Lock

AmmoData

Defines projectile prefab, damage, speed, lifetime, ammo identity, and future ammo variations such as armor-piercing or elemental rounds.

  • Ammo
  • Projectiles
  • Damage

Mission Restrictions

Lets target range missions temporarily control weapon selection so drills can enforce specific weapon challenges.

  • Trial Rules
  • Temporary Equip
  • Challenge Design

Weapon Data Model

Each weapon is a data package, not a hardcoded branch hiding inside the player controller.

What WeaponData Stores

WeaponData stores the values that make one weapon different from another. This includes presentation fields such as display name and icon, gameplay fields such as fire rate and magazine size, and system references such as handling data, audio data, ammo data, and view model prefab.

This makes the player controller more reusable. Instead of asking “is this a pistol, shotgun, or rifle,” the controller reads the current WeaponData and acts on that data.

That structure makes weapon creation faster and makes the system more scalable as the project adds more categories, including automatics, crossbows, revolvers, shotguns, snipers, and special weapons.

Visual Data

  • View model prefab
  • Local position
  • Local rotation
  • Local scale

Gameplay Data

  • Fire rate
  • Fire mode
  • Magazine size
  • Reload behavior

System Data

  • AmmoData
  • WeaponHandlingData
  • WeaponAudioData
  • XP per use

Source Code Snapshot

These dropdowns show the core data and loadout scripts behind the weapon collection flow.

WeaponData.cs Data definition for identity, visuals, audio, firing, magazine, reload, dry fire, projectile pattern, and progression
//-----WeaponData.cs START-----
using UnityEngine;

public enum WeaponFireMode
{
    Projectile,
    Hitscan
}

public enum WeaponReloadMode
{
    FullClip,
    OneRoundAtATime
}

public enum EmptyFireBehavior
{
    DryFireOnly,
    ReloadOnly,
    DryFireThenReload
}

[CreateAssetMenu(
    fileName = "WeaponData_NewWeapon",
    menuName = "Echo Systems Lab/Weapons/Weapon Data")]
public class WeaponData : ScriptableObject
{
    [Header("Identity")]
    public string weaponId;

    [Header("HUD")]
    public string displayName;
    public string hudDisplayName;
    public Sprite weaponIcon;

    [TextArea(2, 4)]
    public string description;

    public string weaponType = "Pistol";

    [Header("Visuals")]
    public GameObject viewModelPrefab;
    public Vector3 viewLocalPosition;
    public Vector3 viewLocalEulerAngles;
    public Vector3 viewLocalScale = Vector3.one;

    [Header("Handling")]
    public WeaponHandlingData handlingData;

    [Header("Audio")]
    public WeaponAudioData audioData;

    [Header("Firing")]
    public WeaponFireMode fireMode = WeaponFireMode.Projectile;
    public AmmoData defaultAmmo;
    public float fireRate = 0.35f;
    public bool isAutomatic;

    [Header("Magazine")]
    public int clipSize = 6;
    public float reloadTime = 1.25f;
    public bool infiniteReserveAmmo = true;

    [Header("Reload Behavior")]
    public WeaponReloadMode reloadMode = WeaponReloadMode.FullClip;

    [Tooltip("If true, the player can fire before a reload has fully completed.")]
    public bool canFireDuringReload = false;

    [Tooltip("If true, firing during reload stops the reload process.")]
    public bool cancelReloadOnFire = true;

    [Tooltip("Only used for one-round-at-a-time reload weapons.")]
    public float reloadStartTime = 0.25f;

    [Tooltip("Only used for one-round-at-a-time reload weapons.")]
    public float reloadRoundInsertTime = 0.45f;

    [Tooltip("Only used for one-round-at-a-time reload weapons.")]
    public float reloadEndTime = 0.25f;

    [Header("Reload Feedback Stages")]
    [Tooltip("Plays reload start audio/trigger when reload begins.")]
    public bool playReloadStartFeedback = true;

    [Tooltip("Plays reload insert audio/trigger. For FullClip reloads, this plays once at Full Reload Insert Feedback Time. For OneRoundAtATime reloads, this plays once per inserted round.")]
    public bool playReloadInsertFeedback = false;

    [Tooltip("Plays reload end audio/trigger near the end of reload.")]
    public bool playReloadEndFeedback = false;

    [Tooltip("Only used for FullClip reloads. Time after reload starts before insert feedback plays.")]
    public float fullReloadInsertFeedbackTime = 0.5f;

    [Tooltip("Only used for FullClip reloads. How early before reload completion the end feedback should play.")]
    public float fullReloadEndFeedbackLeadTime = 0.05f;

    [Header("Dry Fire")]
    public bool canDryFire = true;
    public float dryFireCooldown = 0.2f;

    [Header("Empty Fire Behavior")]
    [Tooltip("What happens when the player presses fire while the weapon is empty.")]
    public EmptyFireBehavior emptyFireBehavior = EmptyFireBehavior.DryFireOnly;

    [Tooltip("Only used by DryFireThenReload. Adds a small delay after the dry fire click before reload starts.")]
    public float emptyFireReloadDelay = 0.12f;

    [Header("Projectile Pattern")]
    public int projectilesPerShot = 1;
    public float spreadAngle = 0f;

    [Header("Progression")]
    public int xpPerUse = 10;
}
//-----WeaponData.cs END-----
PlayerWeaponLoadoutController.cs Cycles owned weapons, respects mission weapon locks, and equips the next or previous weapon
//-----PlayerWeaponLoadoutController.cs START-----
using System.Collections.Generic;
using UnityEngine;

public class PlayerWeaponLoadoutController : MonoBehaviour
{
    [Header("References")]
    [SerializeField] private PlayerWeaponController weaponController;
    [SerializeField] private PlayerInputReader inputReader;

    private bool inputEnabled = true;

    private void Awake()
    {
        if (weaponController == null)
            weaponController = GetComponent<PlayerWeaponController>();

        if (inputReader == null)
            inputReader = GetComponent<PlayerInputReader>();
    }

    private void Update()
    {
        if (!inputEnabled)
            return;

        if (inputReader == null)
            return;

        if (!CanCycleWeapons())
            return;

        if (inputReader.CycleNextWeaponPressed)
            CycleWeapon(1);

        if (inputReader.CyclePreviousWeaponPressed)
            CycleWeapon(-1);
    }

    public void SetInputEnabled(bool enabled)
    {
        inputEnabled = enabled;
    }

    public bool CanCycleWeapons()
    {
        if (!inputEnabled)
            return false;

        return !IsWeaponSelectionLocked();
    }

    public void CycleNextWeapon()
    {
        CycleWeapon(1);
    }

    public void CyclePreviousWeapon()
    {
        CycleWeapon(-1);
    }

    private void CycleWeapon(int direction)
    {
        if (!CanCycleWeapons())
            return;

        if (SaveManager.Instance == null)
            return;

        WeaponDatabase database = SaveManager.Instance.WeaponDatabase;

        if (database == null)
        {
            Debug.LogWarning("No WeaponDatabase assigned to SaveManager.");
            return;
        }

        List<WeaponData> ownedWeapons = database.GetOwnedWeaponsInDatabaseOrder();

        if (ownedWeapons.Count <= 0)
        {
            Debug.Log("No owned weapons to cycle.");
            return;
        }

        int currentIndex = GetCurrentWeaponIndex(ownedWeapons);

        if (currentIndex < 0)
            currentIndex = 0;

        int nextIndex = currentIndex + direction;

        if (nextIndex >= ownedWeapons.Count)
            nextIndex = 0;

        if (nextIndex < 0)
            nextIndex = ownedWeapons.Count - 1;

        WeaponData nextWeapon = ownedWeapons[nextIndex];

        if (weaponController != null)
            weaponController.EquipWeapon(nextWeapon);
    }

    private int GetCurrentWeaponIndex(List<WeaponData> ownedWeapons)
    {
        string activeWeaponId = PlayerProgress.ActiveWeaponId;

        for (int i = 0; i < ownedWeapons.Count; i++)
        {
            if (ownedWeapons[i] == null)
                continue;

            if (ownedWeapons[i].weaponId == activeWeaponId)
                return i;
        }

        return -1;
    }

    private bool IsWeaponSelectionLocked()
    {
        TargetRangeMissionController missionController = TargetRangeMissionController.Instance;

        return missionController != null &&
               missionController.IsWeaponSelectionLocked;
    }
}
//-----PlayerWeaponLoadoutController.cs END-----

Design Notes

The strongest part of this system is the separation between permanent player progress and temporary mission rules.

Collection Is Persistent

Owned weapons are saved as IDs, allowing the player collection to rebuild cleanly after loading.

Active Weapon Is Separate

The active weapon ID can be saved independently from the full owned collection.

Mission Weapons Can Be Temporary

A mission can equip a weapon for that drill without pretending the player permanently selected it.

Reload Modes Are Data

Full clip reloads and one-round-at-a-time reloads are handled through weapon data settings.

Ammo Can Expand

AmmoData leaves room for alternate projectile types, damage values, speeds, and effects.

Feedback Hooks Stay Modular

Handling data and audio data let visuals and sound grow without bloating WeaponData into a swamp-beast.

Problems Solved

This system grew out of a simple pistol pedestal and became a flexible weapon framework.

Key Iteration Wins

The first weapon implementation only needed to equip one pistol and fire one projectile. As soon as the project added more weapon types, the controller needed to stop owning every weapon-specific detail.

Moving weapon values into WeaponData made the controller more generic. Adding a shotgun, revolver, rifle, or crossbow becomes a data setup problem instead of a new branch inside the player controller.

The system also solved the mission design problem of letting players own weapons without letting every weapon break every drill. Mission-specific restrictions keep challenge rules intact while long-term progression still feels rewarding.

Before

Weapon behavior was closely tied to player controller logic and one-off test scene setup.

After

Weapons are reusable data assets with separate handling, audio, ammo, reload, and progression settings.

Result

The project can add new weapons and mission rules without rewriting the whole firing system.

Portfolio Value

This system shows scalable Unity gameplay architecture built around clean data ownership.

What This Demonstrates

The Weapon Data, Loadout & Drill Restrictions system demonstrates practical gameplay architecture: ScriptableObject tuning, runtime equipment changes, saved weapon ownership, active weapon state, reload mode variation, ammo separation, and mission-specific weapon restrictions.

It also shows an important production habit: separating systems before they become difficult to maintain. Weapon behavior, handling feedback, audio feedback, ammo definitions, and progression data are related, but they do not all need to live in one giant controller.

For portfolio purposes, this is a strong example of turning a single mechanic into an expandable framework.

Demonstrates

  • ScriptableObject architecture
  • Weapon collection persistence
  • Runtime loadout switching
  • Mission rule enforcement

Good For

  • Gameplay programmer roles
  • Systems programmer roles
  • Technical design discussion
  • Unity portfolio walkthroughs

Next Improvements

  • Weapon comparison UI
  • Weapon stat display
  • Unlock reward summary
  • Attachment-ready weapon data

Related Systems

Weapon data connects directly to save progress, target range drills, view model feedback, and the audio subsystem.

Save, Progression & Unlocks

Covers owned weapon IDs, active weapon ID, weapon XP, completed missions, and saved progression state.

Open Page

Target Range Mission Framework

Covers target range drills, mission objectives, scoring, accuracy, trial completion, and mission weapon rules.

Open Page

Weapon Handling & Feedback

Covers kickback, recoil, reticle motion, muzzle flash, dry fire feedback, reload hooks, sway, and bob.

Open Page
